15m & 20m High Capacity ATEX Hose Reels
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743

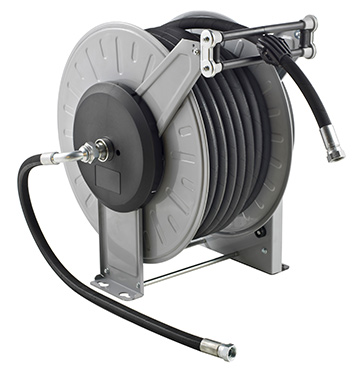

This High Capacity ATEX Hose Reel is designed for diesel dispensing in explosive environments, and comes available in 15m and 20m lengths. The automatic spring rewind hose reel has been designed for use with low pressure diesel pump systems and refuelling applications, and are ideal for long distance refuelling. With a 1” BSP outlet, a dispensing nozzle can be easily connected – something which is rare in larger reels as they usually include conical fittings. This ATEX fuel hose reel has a sturdy steel structure and can be floor, wall or ceiling mounted.
Features of the High Capacity Automatic ATEX Hose Reel:
- Automatic spring rewind fuel hose reel
- 4 roller guide
- Anti-kink spring at nozzle end & hose stop
- 1” M BSP parallel fitting on nozzle end
- 25 or 20m anti-static hose
- Max pressure 10 bar
- c/w 1m whip hose
- Inlet swivel with 1” F BSP connection
- Adjustable hose arms
- ATEX certified: II 2G h IIB T6 T4 Gb -20°C ≤ Ta ≤ +65°C II 2D h IIIB 20°C 135°C Db -20°C ≤ Ta ≤ +65°C
Available Options
1” ATEX Hose Reel c/w 15m
Inc. VAT: £1,339.67
Max length (m) – 15 Max pressure (bar) – 10 Inlet – 1” F BSP Swivel Outlet – 1” M BSP
1” ATEX Hose Reel c/w 20m
Inc. VAT: £1,979.45
Max length (m) – 20 Max pressure (bar) – 10 Inlet – 1” F BSP Swivel Outlet – 1” M BSP
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| HRHC2515EX | 1” ATEX Hose Reel c/w 15m | Max length (m) – 15 Max pressure (bar) – 10 Inlet – 1” F BSP Swivel Outlet – 1” M BSP |
£1,116.39
Inc. VAT: £1,339.67 |
|
| HRHC2520EX | 1” ATEX Hose Reel c/w 20m | Max length (m) – 20 Max pressure (bar) – 10 Inlet – 1” F BSP Swivel Outlet – 1” M BSP |
£1,649.54
Inc. VAT: £1,979.45 |
