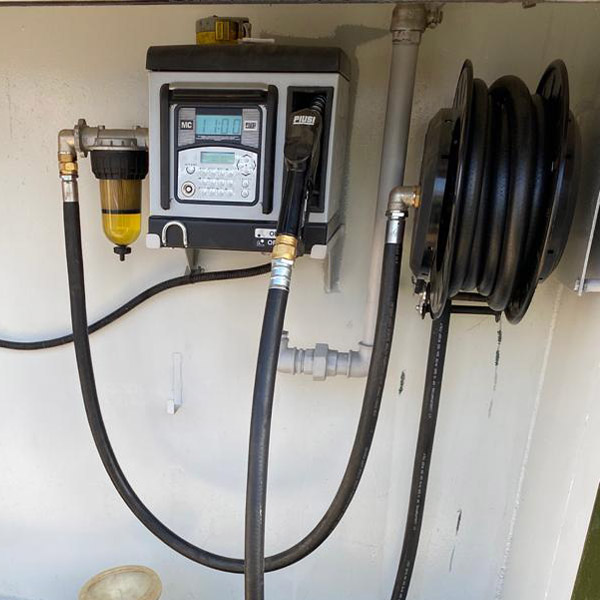

Piusi Automatic Diesel Hose Reel

The Piusi Automatic Diesel Hose Reel has been designed specifically to work with low pressure diesel pumping systems such as vehicle refuelling applications. Popular with bunded fuel tank manufacturers for mounting directly onto the storage tank, this retractable diesel fuel hose reel can be supplied complete with a range of hose lengths, or as a bare reel should the user wish to add their own choice of hose. These diesel hose reels benefit from a sturdy steel structure for use in heavy duty environments, adjustable arm brackets for easy positioning and a protected latch mechanism to prevent injury to the hands when operating the reel. The bare version of the Piusi retractable diesel hose reel comes with a protection spring, hose stop and hose clamp for the easy connection of the user's choice of hose.

Features of the Piusi Retractable Fuel Hose Reel:

Automatic spring rewind fuel hose reel
Sturdy steel structure
Reduced pressure loss through hydraulic sizing
Protected latch mechanism which prevents injury
Adjustable arm brackets for easy positioning
Optional fixed or rotating support plate
Can be supplied with or without hose
3/4" and 1" versions available

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code	Name	Description	Price
F0075025A	1” Empty Hose Reel XL Steel hub	Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.5@80 lpm	£769.25 Inc. VAT: £923.10
F0075026B	1” Hose Reel XL Steel Hub c/w 15m hose	Max Length (m) - 15m Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Oulet - 1" M BSP Pressure Loss (Bar) - 0.8@80 lpm	£1,024.44 Inc. VAT: £1,229.33
F16279000	F16279000	Rotating Support Plate Large For all reels excl. SMALL & XL	£50.72 Inc. VAT: £60.86
F17316000	F17316000	Fixed Support Plate Small For reels marked SMALL	£26.83 Inc. VAT: £32.20
F17317000	F17317000	Rotating Support Plate Small For reels marked SMALL	£44.96 Inc. VAT: £53.95
OAB2270	OAB2270	1m Whip Hose 1" M x 1" M BSP	£29.93 Inc. VAT: £35.92
OAB2271	OAB2271	1.5m Whip Hose 1" M X 1" M BSP	£28.36 Inc. VAT: £34.03
OAB2272	OAB2272	2m Whip Hose 1" M X 1" M BSP	£33.91 Inc. VAT: £40.69
F00750030	Piusi 1" Diesel Hose Reel c/w 10m Hose	Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 80 lpm	£622.95 Inc. VAT: £747.54
F00750020	Piusi 1" Diesel Hose Reel c/w 8m Hose	Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 80 lpm	£568.79 Inc. VAT: £682.55
F00750010	Piusi 1" Empty Diesel Hose Reel - Max 10m	Max Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.2 @ 80 lpm	£477.34 Inc. VAT: £572.81
F00750180	Piusi 1" Empty Diesel Hose Reel - Max 15m XL	Max Length (m) - 15 Max Pressure (Bar) - 15 Inlet - 1" F BSPP Swivel Oulet - 1" M Hose Barb Pressure Loss (Bar) - 0.4 @ 80 lpm	£718.17 Inc. VAT: £861.80
F00750100	Piusi 3/4" Diesel Hose Reel c/w 14m Hose	Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.8 @ 60lpm	£559.94 Inc. VAT: £671.93
F00750040	Piusi 3⁄4" Diesel Hose Reel c/w 10m Hose	Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 60 lpm	£530.09 Inc. VAT: £636.11
F00750090	Piusi 3⁄4" Diesel Hose Reel c/w 8m Hose SMALL	Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 60 lpm	£479.58 Inc. VAT: £575.50
F00750080	Piusi 3⁄4" Empty Diesel Hose Reel - Max 9.5m SMALL	Max Length (m) - 9.5 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm	£345.65 Inc. VAT: £414.78
F00750000	Piusi 3⁄4" Empty DieselHose Reel - Max 14m	Max Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm	£456.56 Inc. VAT: £547.87

Code

Name

Description

Price

Buy

F0075025A

1” Empty Hose Reel XL Steel hub

Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.5@80 lpm

£769.25

Inc. VAT: £923.10

F0075026B

1” Hose Reel XL Steel Hub c/w 15m hose

Max Length (m) - 15m Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Oulet - 1" M BSP Pressure Loss (Bar) - 0.8@80 lpm

£1,024.44

Inc. VAT: £1,229.33

F16279000

Rotating Support Plate Large For all reels excl. SMALL & XL

£50.72

Inc. VAT: £60.86

F17316000

Fixed Support Plate Small For reels marked SMALL

£26.83

Inc. VAT: £32.20

F17317000

Rotating Support Plate Small For reels marked SMALL

£44.96

Inc. VAT: £53.95

OAB2270

1m Whip Hose 1" M x 1" M BSP

£29.93

Inc. VAT: £35.92

OAB2271

1.5m Whip Hose 1" M X 1" M BSP

£28.36

Inc. VAT: £34.03

OAB2272

2m Whip Hose 1" M X 1" M BSP

£33.91

Inc. VAT: £40.69

F00750030

Piusi 1" Diesel Hose Reel c/w 10m Hose

Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 80 lpm

£622.95

Inc. VAT: £747.54

F00750020

Piusi 1" Diesel Hose Reel c/w 8m Hose

Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 80 lpm

£568.79

Inc. VAT: £682.55

F00750010

Piusi 1" Empty Diesel Hose Reel - Max 10m

Max Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 1" Hose Barb Pressure Loss (Bar) - 0.2 @ 80 lpm

£477.34

Inc. VAT: £572.81

F00750180

Piusi 1" Empty Diesel Hose Reel - Max 15m XL

Max Length (m) - 15 Max Pressure (Bar) - 15 Inlet - 1" F BSPP Swivel Oulet - 1" M Hose Barb Pressure Loss (Bar) - 0.4 @ 80 lpm

£718.17

Inc. VAT: £861.80

F00750100

Piusi 3/4" Diesel Hose Reel c/w 14m Hose

Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.8 @ 60lpm

£559.94

Inc. VAT: £671.93

F00750040

Piusi 3⁄4" Diesel Hose Reel c/w 10m Hose

Length (m) - 10 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.7 @ 60 lpm

£530.09

Inc. VAT: £636.11

F00750090

Piusi 3⁄4" Diesel Hose Reel c/w 8m Hose SMALL

Length (m) - 8 Max Pressure (Bar) - 10 Inlet - 1" F BSPP Swivel Outlet - 1" M BSPP Pressure Loss (Bar) - 0.6 @ 60 lpm

£479.58

Inc. VAT: £575.50

F00750080

Piusi 3⁄4" Empty Diesel Hose Reel - Max 9.5m SMALL

Max Length (m) - 9.5 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm

£345.65

Inc. VAT: £414.78

F00750000

Piusi 3⁄4" Empty DieselHose Reel - Max 14m

Max Length (m) - 14 Max Pressure (Bar) - 10 Inlet - 1" M BSPP Swivel Oulet - 3⁄4" Hose Barb Pressure Loss (Bar) - 0.15 @ 60 lpm

£456.56

Inc. VAT: £547.87

4.0

12 Reviews

5★

4★

3★

2★

1★

James H.

Verified Buyer • 12 Mar 2026

Excellent product — exactly as described.

Used this on a JCB 3CX turbo downpipe. Fits perfectly, holds up very well to heat cycles. Much better than the fibreglass wrap I used previously — no itching, easier to handle. Will definitely be ordering again.

Mark T.

Verified Buyer • 28 Feb 2026

Great value, fast delivery.

Good quality wrap for the price. Arrived next day which was great. The 50mm width covered my headers nicely with a bit of overlap. Holds up well after a few heat cycles.

S. Patel

Verified Buyer • 14 Jan 2026

Decent product, application tricky without soaking first.

Wrap itself is good quality but I'd strongly advise soaking in water for 10–15 mins before wrapping — it makes it much more pliable and easier to apply. Didn't do this first time and it was frustrating. Product is fine though, no complaints.
