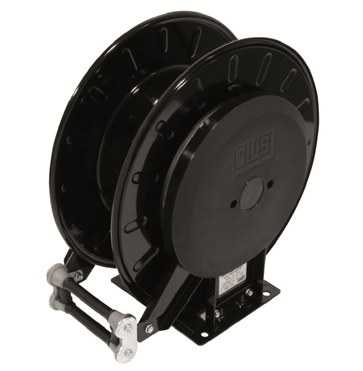

Piusi Open Automatic Oil Hose Reel

The Piusi Open Automatic Oil Hose Reel is designed for high pressure oil dispensing systems in garage and workshop environments. Thanks to its sturdy steel structure and four way roller mechanism to stop friction wear to the hose when unrolling, this retractable oil hose reel is made to last even in heavy duty environments. The Piusi open oil reels also benefit from adjustable arm brackets to allow for easy positioning and a hose stop for locking the hose at the desired length. Available with a choice of hose lengths or bare should the user wish to add their own specified hose, the Piusi retractable oil hose reel is suitable for a range of requirements.

Features of the Piusi Open Retractable Oil Hose Reel:

Automatic spring rewind oil hose reel
Sturdy steel structure
Rachet to prevent lock up when hose is extended
4 way rollers to facilitate smooth unrolling
Hose stop for locking at chosen length
Adjustable arm brackets for easy positioning
Supplied bare or with different hose lengths

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.

Code	Name	Description	Price
F16279000	F16279000	Rotating Support Plate Large For all reels excl. SMALL & XL	£50.72 Inc. VAT: £60.86
F16298000	F16298000	Fixed Support Plate Large For all reels excl. SMALL & XL	£19.17 Inc. VAT: £23.00
F17316000	F17316000	Fixed Support Plate Small For reels marked SMALL	£26.83 Inc. VAT: £32.20
F17317000	F17317000	Rotating Support Plate Small For reels marked SMALL	£44.96 Inc. VAT: £53.95
HA60101000	Piusi 1" Open Oil Hose Reel c/w 10m Hose	Hose length (m) - 10 Working Pressure (Bar) - 60 Pressure drop - 2 @ 30lpm Inlet - 1“ Male BSP Outlet - 1“ Male BSP	£834.20 Inc. VAT: £1,001.04
HN60201200	Piusi ½“ Empty Open Oil Hose Reel	Max Length (m)- 20 Working Pressure (Bar) - 60 Inlet- ½“ Male BSP Outlet- ½“ Male BSP	£345.52 Inc. VAT: £414.62
HN60151200	Piusi ½“ Empty Open Oil Hose Reel SMALL	Max Length (m) - 15 Working Pressure (Bar )-60 Inlet- ½“ M BSP Outlet- ½“ M BSP	£295.26 Inc. VAT: £354.31
HA60151200	Piusi ½“ Open Oil Hose Reel c/w 15m Hose	Hose length (m) - 15 Working Pressure (Bar) - 60 Pressure drop - 16 @ 30lpm Inlet- ½“ Male BSP Outlet - ½” Male BSP	£452.01 Inc. VAT: £542.41
HA60101200	Piusi ½” Open Oil Hose Reel c/w 10m Hose SMALL	Hose length (m) - 10 Working Pressure (Bar) - 60 Pressure drop - 10 @ 30lpm Inlet - ½“ Male BSP Outlet - ½" Male BSP	£409.49 Inc. VAT: £491.39
HA60153400	Piusi 3/4" Open Oil Hose Reel c/w 15m Hose	Hose length (m) - 15 Working Pressure (Bar) - 60 Pressure drop - 4.5 @ 30lpm Inlet - 1“ Male BSP Outlet - 3/4“ Male BSP	£900.78 Inc. VAT: £1,080.94
HN60153800	Piusi 3/8“ Empty Open Oil Hose Reel SMALL	Max Length (m) – 15 Working Pressure (Bar) - 60 Inlet- 3/8” F BSP Outlet- 3/8 “ F BSP	£291.46 Inc. VAT: £349.75

Code

Name

Description

Price

Buy

F16279000

Rotating Support Plate Large For all reels excl. SMALL & XL

£50.72

Inc. VAT: £60.86

F16298000

Fixed Support Plate Large For all reels excl. SMALL & XL

£19.17

Inc. VAT: £23.00

F17316000

Fixed Support Plate Small For reels marked SMALL

£26.83

Inc. VAT: £32.20

F17317000

Rotating Support Plate Small For reels marked SMALL

£44.96

Inc. VAT: £53.95

HA60101000

Piusi 1" Open Oil Hose Reel c/w 10m Hose

Hose length (m) - 10 Working Pressure (Bar) - 60 Pressure drop - 2 @ 30lpm Inlet - 1“ Male BSP Outlet - 1“ Male BSP

£834.20

Inc. VAT: £1,001.04

HN60201200

Piusi ½“ Empty Open Oil Hose Reel

Max Length (m)- 20 Working Pressure (Bar) - 60 Inlet- ½“ Male BSP Outlet- ½“ Male BSP

£345.52

Inc. VAT: £414.62

HN60151200

Piusi ½“ Empty Open Oil Hose Reel SMALL

Max Length (m) - 15 Working Pressure (Bar )-60 Inlet- ½“ M BSP Outlet- ½“ M BSP

£295.26

Inc. VAT: £354.31

HA60151200

Piusi ½“ Open Oil Hose Reel c/w 15m Hose

Hose length (m) - 15 Working Pressure (Bar) - 60 Pressure drop - 16 @ 30lpm Inlet- ½“ Male BSP Outlet - ½” Male BSP

£452.01

Inc. VAT: £542.41

HA60101200

Piusi ½” Open Oil Hose Reel c/w 10m Hose SMALL

Hose length (m) - 10 Working Pressure (Bar) - 60 Pressure drop - 10 @ 30lpm Inlet - ½“ Male BSP Outlet - ½" Male BSP

£409.49

Inc. VAT: £491.39

HA60153400

Piusi 3/4" Open Oil Hose Reel c/w 15m Hose

Hose length (m) - 15 Working Pressure (Bar) - 60 Pressure drop - 4.5 @ 30lpm Inlet - 1“ Male BSP Outlet - 3/4“ Male BSP

£900.78

Inc. VAT: £1,080.94

HN60153800

Piusi 3/8“ Empty Open Oil Hose Reel SMALL

Max Length (m) – 15 Working Pressure (Bar) - 60 Inlet- 3/8” F BSP Outlet- 3/8 “ F BSP

£291.46

Inc. VAT: £349.75
