CTS Single Channel Fuel Tank Alarm
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743
The CTS single channel fuel tank alarm system provides the user with the choice of setting the alarm to alert of either a high level, low level or bund leak depending upon their requirements. This level and bund alarm is a simple and cost effective solution when the user only requires to be alerted of one scenario, therefore making the multi-zone tank level alarm over-specified.

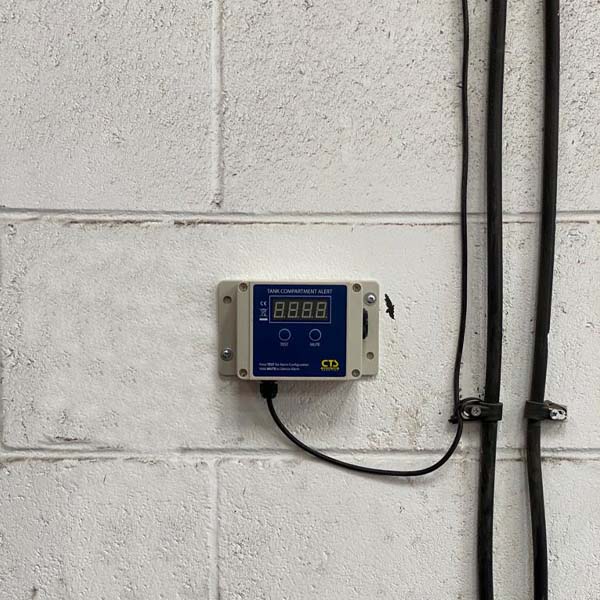

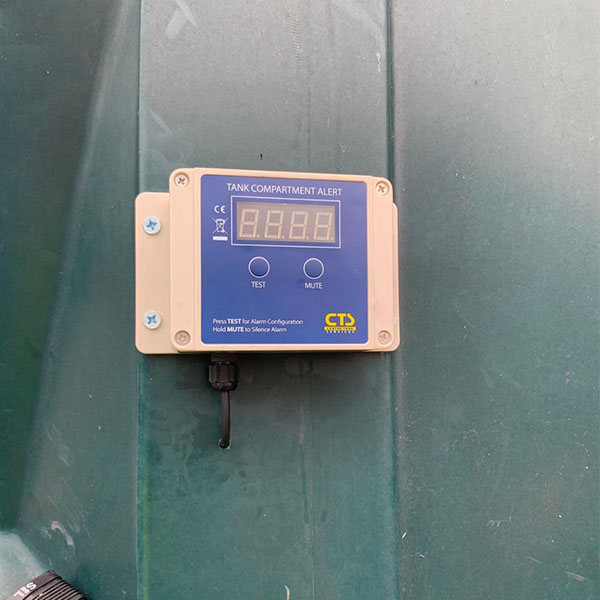

The single channel fuel tank alarm has a clear, descriptive seven segment LED display that informs the user of the activated tank state. It features a test button that will activate the 90dB sounder and flash the display showing the current configuration of the tank level alarm, and a mute button to silence the sounder.
This main powered version fuel tank alarm has the additional feature of a volt-free relay for connecting the fuel storage tank alarm to another piece of equipment on-site such as a building management system, or another mains powered single channel alarm allowing the alarm status to monitored remotely for example in the office. Whilst commonly used as a diesel tank alarm, it is also suitable for use with a range of fluids such as water, waste oil and chemicals (see accessories table for other tank level probes).
Please note: All cables must be free of electrical noise.
Features of the CTS Single Channel Fuel Tank Level Alarm:
- Choice of high level, low level or bund alert
- Weatherproof IP55 enclosure
- Red LED text display & 90dB sounder
- Test and alarm mute functions
- 4 x external mounting lugs
- Automatic reversed float logic if ‘low’ alert is selected
- Available in mains power
- Come with volt-free contact relay
- Versions with diesel/oil probe for fuel tanks
- Versions without probe for use with fluids other than diesel/oil
- 25m max probe length
Available Options
AdBlue Tank Level Alarm Probe
Inc. VAT: £97.06
Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue
Battery Single Channel Fuel Tank Alarm Box Only
Inc. VAT: £83.09
Box only - select probe from accessories table 1 x PP3 battery 90db sounder
Battery Single Channel Fuel Tank Alarm c/w Probe
Inc. VAT: £130.66

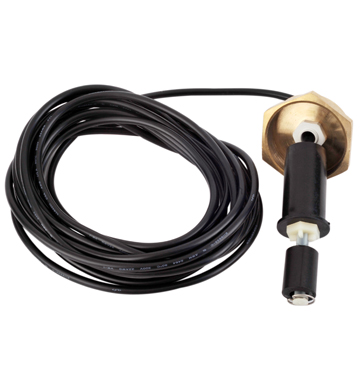

1 x PP3 battery Probe c/w 5m cable and 1.5" brass cap 90db sounder For diesel, fuels, light oils and water
High Viscosity Fluid Tank Level Alarm Probe
Inc. VAT: £123.50
Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For viscous fluids and waste oils
Mains Single Channel Fuel Tank Alarm Box Only
Inc. VAT: £126.59
Box only - select probe from accessories table 230v Relay 90db sounder
Mains Single Channel Fuel Tank Alarm c/w Battery Back Up Box Only
Inc. VAT: £146.76
Box only - select probe from accessories table 230v Relay 90db sounder Battery back up
Mains Single Channel Fuel Tank Alarm c/w Battery Back Up c/w Probe
Inc. VAT: £228.53
230v Probe c/w 5m cable and 1.5" brass cap Relay 90db sounder Battery back up For diesel, fuels, light oils and water
Mains Single Channel Fuel Tank Alarm c/w Probe
Inc. VAT: £209.26
230v Probe c/w 5m cable and 1.5" brass cap Relay 90db sounder For diesel, fuels, light oils and water
Oil Drum Level Probe
Inc. VAT: £84.80
Alerts - High Cable - 5m PVC Temperature - 20°c - +80°c 3/4" M BSPT Steel Drum
SWS1009
Inc. VAT: £2.35
Extra Alarm Cable Per Metre Per Metre
SWS1036
Inc. VAT: £12.67
Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
Water & Chemical Tank Level Alarm Probe
Inc. VAT: £62.59
Alerts - High or Low Cable - 5m PVC Temperature - 20°c - +80°c Connection - 1 1/2" F BSP Polyethylene Cap
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| SWS1038AB | AdBlue Tank Level Alarm Probe | Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue |
£80.88
Inc. VAT: £97.06 |
|
| SWS1021 | Battery Single Channel Fuel Tank Alarm Box Only | Box only - select probe from accessories table 1 x PP3 battery 90db sounder |
£69.24
Inc. VAT: £83.09 |
|
| SWS1011 | Battery Single Channel Fuel Tank Alarm c/w Probe | 1 x PP3 battery Probe c/w 5m cable and 1.5" brass cap 90db sounder For diesel, fuels, light oils and water |
£108.88
Inc. VAT: £130.66 |
|
| SWS1038 | High Viscosity Fluid Tank Level Alarm Probe | Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For viscous fluids and waste oils |
£102.92
Inc. VAT: £123.50 |
|
| SWS2004 | Mains Single Channel Fuel Tank Alarm Box Only | Box only - select probe from accessories table 230v Relay 90db sounder |
£105.49
Inc. VAT: £126.59 |
|
| SWS2007 | Mains Single Channel Fuel Tank Alarm c/w Battery Back Up Box Only | Box only - select probe from accessories table 230v Relay 90db sounder Battery back up |
£122.30
Inc. VAT: £146.76 |
|
| SWS2003 | Mains Single Channel Fuel Tank Alarm c/w Battery Back Up c/w Probe | 230v Probe c/w 5m cable and 1.5" brass cap Relay 90db sounder Battery back up For diesel, fuels, light oils and water |
£190.44
Inc. VAT: £228.53 |
|
| SWS2002 | Mains Single Channel Fuel Tank Alarm c/w Probe | 230v Probe c/w 5m cable and 1.5" brass cap Relay 90db sounder For diesel, fuels, light oils and water |
£174.38
Inc. VAT: £209.26 |
|
| SWS1039 | Oil Drum Level Probe | Alerts - High Cable - 5m PVC Temperature - 20°c - +80°c 3/4" M BSPT Steel Drum |
£70.67
Inc. VAT: £84.80 |
|
| SWS1009 | SWS1009 | Extra Alarm Cable Per Metre Per Metre |
£1.96
Inc. VAT: £2.35 |
|
| SWS1036 | SWS1036 | Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet |
£10.56
Inc. VAT: £12.67 |
|
| SWS1040 | Water & Chemical Tank Level Alarm Probe | Alerts - High or Low Cable - 5m PVC Temperature - 20°c - +80°c Connection - 1 1/2" F BSP Polyethylene Cap |
£52.16
Inc. VAT: £62.59 |
