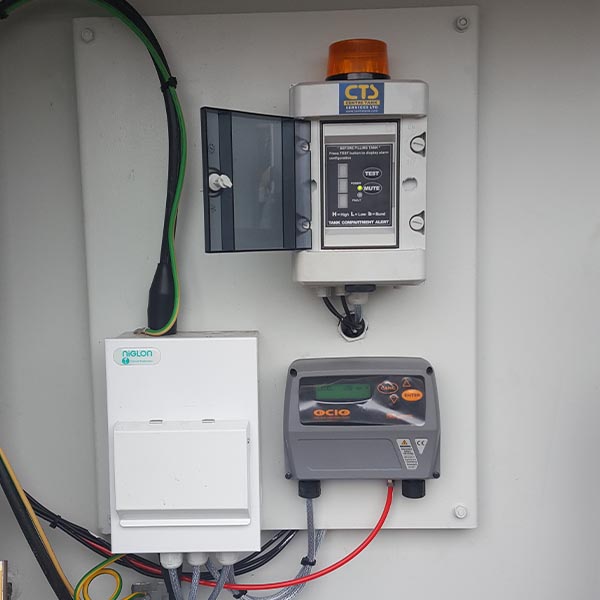

The CTS Mains Operated Multi-Compartment Fuel Tank Alarm system has three functions; to detect and warn of a tank overfill, a high/low liquid level and a bund leak. If this fuel tank alarm identifies any of these issues, the zone in question will light up on the alarm’s screen, combined with an alarm sounder and flashing orange strobe, which provides the user with a clear warning of the activated tank state. Each zone can be configured in any of the three functions High, Low or Bund, enabling the complete customisation of these fuel tank alarms based upon the user's requirements with a very simple set of electrical jumpers.
Options are available complete with three relays, to allow external equipment to be connected to each zone of the tank level alarm such as building management system for remote monitoring. This level and bund alarm also has the additional feature of controlling the pump from the relays (if fitted). When the fuel storage tank contents are 'low', the pump switches on and stays on until 'high' is reached.
If you require a tank level alarm for something other than diesel or light oil, we also supply a water and chemical alarm probe, and a high viscosity oil tank level probe – which is also suitable for AdBlue as well as high viscosity oils. Please see the accessories table for more information.
Please note: Codes SWS2000 and SWS2001 do not come complete with probes. Please view the accessories table to select the combination you need. All cables must be free of electrical noise
Features of the CTS Mains Multi-Zone Fuel Tank Level Alarm:
- For any combination of high, low, bund
- Weatherproof IP55 rated box
- LED zone lights up to indicate the issue
- 90db sounder
- Flashing orange strobe
- Test and mute functions
- Automatically reversed float logic for 'low zones'
- Accepts multiple voltages of 110v, 230v, 12v and 24v
- Option available with 3 relays
- Options with probe/s available - see table
- SWS2000 and SWS2001 not supplied with probes - select from accessories table
- 95m max probe length
Available Options
AdBlue Tank Level Alarm Probe
Inc. VAT: £97.06
Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue
CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays
Inc. VAT: £352.37
Alarm Box c/w Single Probe Multiple input voltages Orange strobe 90dB sounder 3 x Relays (C,NO,NC @ 230v 8A)
CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays
Inc. VAT: £452.54
Alarm Box c/w Single & Double Probes Multiple input voltages Orange strobe 90dB sounder 3 x Relays (C,NO,NC @ 230v 8A)
CTS Mains Multi-Compartment Fuel Tank Alarm Box Only
Inc. VAT: £287.76
Box only - select probes from accessories table Multiple input voltages Orange strobe 90dB sounder

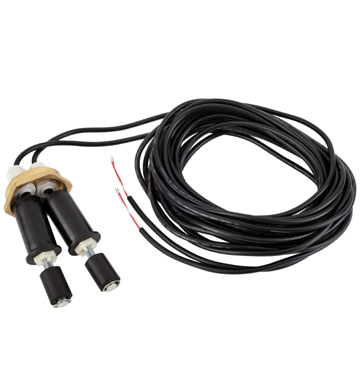

Double Fuel Tank Alarm Probe - For high and low level
Inc. VAT: £121.07
Alerts - High/low, high/high, low/low Cable - 2 x 5m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap 2 x Grommet For diesel, fuels, light oils and water
High Viscosity Fluid Tank Level Alarm Probe
Inc. VAT: £123.50
Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For viscous fluids and waste oils
SWS1009
Inc. VAT: £2.35
Extra Alarm Cable Per Metre Per Metre
SWS1035
Inc. VAT: £46.14

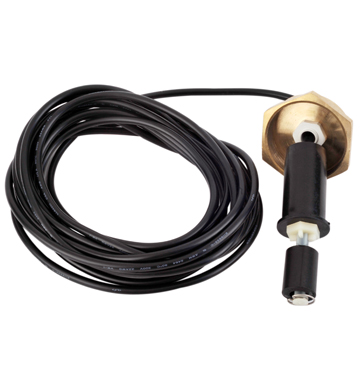

Single Fuel Probe – for leak detection if drip tray is installed
SWS1035
Inc. VAT: £64.44
Single Fuel Probe – for leak detection if drip tray is installed
SWS1036
Inc. VAT: £12.67
Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
SWS2001
Inc. VAT: £247.42
Mains Multi Zone Alarm c/w Relays
SWS2001
Inc. VAT: £298.03
Mains Multi Zone Alarm c/w Relays
Water & Chemical Tank Level Alarm Probe
Inc. VAT: £62.59
Alerts - High or Low Cable - 5m PVC Temperature - 20°c - +80°c Connection - 1 1/2" F BSP Polyethylene Cap
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| SWS1038AB | AdBlue Tank Level Alarm Probe | Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue |
£80.88
Inc. VAT: £97.06 |
|
| SWS2009 | CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe & 3 Relays | Alarm Box c/w Single Probe Multiple input voltages Orange strobe 90dB sounder 3 x Relays (C,NO,NC @ 230v 8A) |
£293.64
Inc. VAT: £352.37 |
|
| SWS2010 | CTS Mains Multi-Compartment Fuel Tank Alarm Box c/w Single Probe, Double Probe & 3 Relays | Alarm Box c/w Single & Double Probes Multiple input voltages Orange strobe 90dB sounder 3 x Relays (C,NO,NC @ 230v 8A) |
£377.12
Inc. VAT: £452.54 |
|
| SWS2000 | CTS Mains Multi-Compartment Fuel Tank Alarm Box Only | Box only - select probes from accessories table Multiple input voltages Orange strobe 90dB sounder |
£239.80
Inc. VAT: £287.76 |
|
| SWS1035/2 | Double Fuel Tank Alarm Probe - For high and low level | Alerts - High/low, high/high, low/low Cable - 2 x 5m PVC Temperature - -20°c - +80°c Connection - 1 1/2" F BSP brass cap 2 x Grommet For diesel, fuels, light oils and water |
£100.89
Inc. VAT: £121.07 |
|
| SWS1038 | High Viscosity Fluid Tank Level Alarm Probe | Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For viscous fluids and waste oils |
£102.92
Inc. VAT: £123.50 |
|
| SWS1009 | SWS1009 | Extra Alarm Cable Per Metre Per Metre |
£1.96
Inc. VAT: £2.35 |
|
| AGR-SWS1035 | SWS1035 | Single Fuel Probe – for leak detection if drip tray is installed |
£38.45
Inc. VAT: £46.14 |
|
| SWS1035 | SWS1035 | Single Fuel Probe – for leak detection if drip tray is installed |
£53.70
Inc. VAT: £64.44 |
|
| SWS1036 | SWS1036 | Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet |
£10.56
Inc. VAT: £12.67 |
|
| AGR-SWS2001 | SWS2001 | Mains Multi Zone Alarm c/w Relays |
£206.18
Inc. VAT: £247.42 |
|
| SWS2001 | SWS2001 | Mains Multi Zone Alarm c/w Relays |
£248.36
Inc. VAT: £298.03 |
|
| SWS1040 | Water & Chemical Tank Level Alarm Probe | Alerts - High or Low Cable - 5m PVC Temperature - 20°c - +80°c Connection - 1 1/2" F BSP Polyethylene Cap |
£52.16
Inc. VAT: £62.59 |
