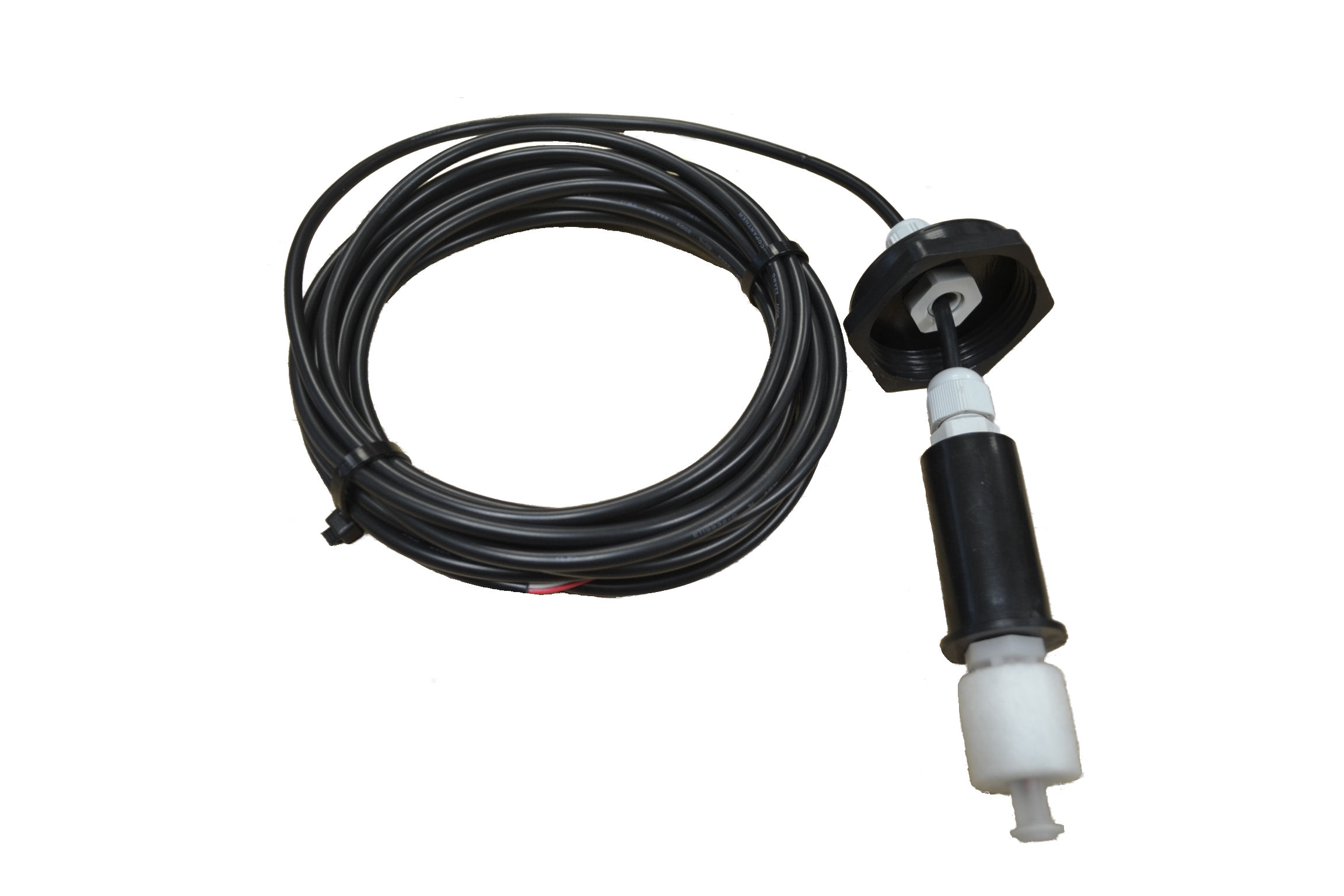

AdBlue™ Tank Level Alarm Probe
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743
This single tank level alarm probe is designed for use with the CTS tank alarms to alert of a high or low level on tanks containing fluids with a high viscosity or containing debris. The primary use of this level switch is for use on tanks those containing liquids that crystallise such as on AdBlue™ tank alarms as due to being encapsualted, it cuts off reliably even when crystallised. A weight can be attached to the cable at any desired length to adjust the switching height.
The standard code for the tank alarm level probe is designed for use on steel tanks. Please see the accessories table for the kit required to adapt it for plastic tanks.
Features of the AdBlue™ Tank Alarm Probe:
- High/low tank level probe for AdBlue™
- 5m PVC cable
- 1.5" F BSP plastic cap & cable gland
- 3 wire NO & NC Contacts
- Polypropylene construction
- Temp Range: 0°c - +60°c
- Max Pressure 4.5kg/cm2
- Switching angle (up = 18deg +/- 4deg, down = 3deg +/- 3deg)
- 3A max switching current
Available Options
AdBlue Tank Level Alarm Probe
Inc. VAT: £97.06
Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue
SWS1009
Inc. VAT: £2.35
Extra Alarm Cable Per Metre Per Metre
SWS1036
Inc. VAT: £12.67
Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| SWS1038AB | AdBlue Tank Level Alarm Probe | Alerts - High and Low Cable - 5m PVC Temperature - 0°c - +60°c Connection - 1 1/2" F BSP Plastic Cap For AdBlue |
£80.88
Inc. VAT: £97.06 |
|
| SWS1009 | SWS1009 | Extra Alarm Cable Per Metre Per Metre |
£1.96
Inc. VAT: £2.35 |
|
| SWS1036 | SWS1036 | Plastic Tank Kit - For Single Probe Kit for using a probe on a plastic rather than steel tank Steel, flat, round plate 1 x Grommet |
£10.56
Inc. VAT: £12.67 |
