MT Profil Heating Oil Tank Gauge
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743

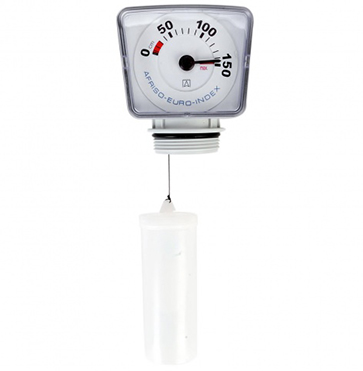

The MT Profil Fuel Tank Float Gauge from Afriso is a small mechanical clock gauge for measuring the tank’s contents by a float that sits on the fuel and goes up and down with the level. Whilst also popular for diesel storage tanks, it is most commonly used as a domestic heating oil tank gauge. The small display shows a scale of Empty 1⁄4, 1⁄2, 3⁄4 and Full for factory calibrated versions, allowing the user to quickly identify the approximate fuel tank level.
This oil tank level gauge is available in different versions depending upon the specific height of the fuel tank, or there is an 8'0 adjustable version. The 8'0 adjustable version of the MT Profil oil tank float gauge displays the level reading in cm, and has a reversible display which goes to 150cm max on one side, and 250cm max on the other.
These oil tank gauges are supplied as standard with 1 1⁄2” BSP Male for easy fitting on the top of the storage tank or drum. If your tank has a 2" BSP hole, you can fit this gauge by purchasing a 2" x 1 1/2" reducing bush (see accessories table). If your tank has a vent hole, you can connect the gauge by fitting a 2" barrel nipple into the hole and adding a combi vent cap which has a 1 1/2" BSP thread to screw in the gauge (see accessories table) to prevent an additional hole being drilled.
Features of the MT Profil Oil Tank Float Gauge:
- Float type oil tank level indicator
- No power needed
- Easy to read
- Top mount via 1 ½” M BSP
- Stench proof
- Suitable for diesel, kerosene and biodiesel up to B100
Available Options
2" Plastic Combi Fuel Tank Vent Cap
Inc. VAT: £13.37
Body - Plastic Connection - 2" Slip Over Top thread - 1 1/2" F BSP
Barrel Nipple 2" M x M
Inc. VAT: £4.87
BI Bush Reducing 2" M x 1 1⁄2" F
Inc. VAT: £4.67
MT 8'0 Fuel Tank Float Gauge
Inc. VAT: £22.61
Clock Type Face Reading Type: cm Display Tank Height (ft/mm) - 8'0/2438 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 1'6 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 1'6/457 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 2'0 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 2'0/610 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 2'6 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 2'6/762 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 3'0 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 3'0/904 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
Mt Profil 3'6 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 3'6/1056 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 4'0 Fuel Tank Float Gauge
Inc. VAT: £21.80
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 4'0/1219 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 5'0 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 5'0/1524 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
MT Profil 6'0 Fuel Tank Float Gauge
Inc. VAT: £23.10
Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 6'0/1828 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| MF6164 | 2" Plastic Combi Fuel Tank Vent Cap | Body - Plastic Connection - 2" Slip Over Top thread - 1 1/2" F BSP |
£11.14
Inc. VAT: £13.37 |
|
| BC9007 | Barrel Nipple 2" M x M |
£4.06
Inc. VAT: £4.87 |
||
| BC8053 | BI Bush Reducing 2" M x 1 1⁄2" F |
£3.89
Inc. VAT: £4.67 |
||
| OAB3308 | MT 8'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: cm Display Tank Height (ft/mm) - 8'0/2438 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£18.84
Inc. VAT: £22.61 |
|
| OAB3001 | MT Profil 1'6 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 1'6/457 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3002 | MT Profil 2'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 2'0/610 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3004 | MT Profil 2'6 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 2'6/762 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3003 | MT Profil 3'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 3'0/904 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3005 | Mt Profil 3'6 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 3'6/1056 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3304 | MT Profil 4'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 4'0/1219 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£18.17
Inc. VAT: £21.80 |
|
| OAB3305 | MT Profil 5'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 5'0/1524 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
|
| OAB3309 | MT Profil 6'0 Fuel Tank Float Gauge | Clock Type Face Reading Type: Empty 1/4 1/2 3/4 Full Tank Height (ft/mm) - 6'0/1828 Gauge Fitting - 1 1/2" M BSP Diesel, kerosene and biodiesel |
£19.25
Inc. VAT: £23.10 |
