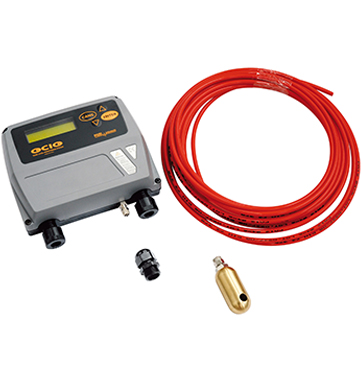

Piusi Ocio Electronic Fuel Tank Gauge
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743
The Piusi Ocio Fuel Tank Gauge is a continuous reading, hydrostatic digital tank level monitoring device designed primarily for commercial diesel fuel tanks. Once calibrated using the specific tank measurements, the Piusi Ocio electronically displays the tank level reading in mm, litre or percentage depending upon the user preference. This fuel tank level gauge allows the user to configure low and high level status alerts, which upon activation causes the LED screen to flash to visually alert the user that the level has been reached for them to take action. It also benefits from two configurable relays for sending the high/low level alert statuses to other equipment e.g. a low level tank alarm for an audiable alert, a remote building management system or to the pump on the tank to turn it off e.g. in day tank filling.
The Piusi Ocio gauge is a versatile fuel tank level indicator suitable for use on vertical cylindrical, horizontal cylindrical and rectangular tanks up to 4m high. Whilst the standard model is designed primarily for diesel, there is an AdBlue™ tank gauge version available and a kit to make the standard Ocio compatible with oil popular in garage and workshop environments. There is also a 4-20ma output model available to allow you to send the level readings to a building management system, whereas the standard model would only send the set high/level alarm statuses to the BMS.
Features of the Ocio Digital Fuel Tank Level Gauge:
- Electronic fuel tank contents gauge
- %, litre and mm readings
- Tank probe with 10 metres capillary
- ½” M BSP balance chamber fitting
- For tanks between 600-4000mm
- Accuracy +/-1%
- High/low level statuses can be set up
- C/w two relays for connection to other equipment
- Suitable for diesel, water or AdBlue (depending on model)
- Oil kit available to add to standard Ocio
- Optional PC software available (see table)
- IP54 Rated
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Available Options
BC8073
Inc. VAT: £2.98
1 1/2" x 1/2" Black Iron Bush for Fuel Ocio Gauge For connecting the balance chamber fittings to a 1 ½” hole
BCS1056
Inc. VAT: £4.52
1" x 1/2" S/S Bush for AdBlue Ocio Gauge For connecting the balance chamber fitting to a 1" hole
BF2010
Inc. VAT: £2.06
1" x 1/2" Brass Bush for Fuel Ocio Gauge For connecting the balance chamber fitting to a 1" hole
F00755G30
Inc. VAT: £1,322.78
Ocio GSM Quad Band
F00755S00
Inc. VAT: £1,101.41
Ocio Desk - 4 - Multi Tank
F00755S10
Inc. VAT: £629.50
Ocio Desk - Single Tank
F00755S20
Inc. VAT: £1,455.42
Ocio Desk - 8 - Multi Tank
F00755S30
Inc. VAT: £1,803.83
Ocio Desk - 12 - Multi Tank
F12939000
Inc. VAT: £47.20
Ocio Oil Kit - For oil up to 2000cSt
F15610000
Inc. VAT: £50.06
Stainless Steel Nut For Stainless Steel Weight Must be purchased with the stainless steel weight in order to be fitted
F15611000
Inc. VAT: £51.12

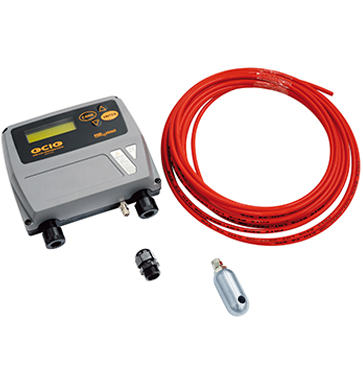

Ocio Stainless Steel Weight - AdBlue version For AdBlue/Urea/DEF
Piusi Ocio AdBlue Tank Level Gauge 230v - AdBlue™
Inc. VAT: £543.40
Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Stainless Steel Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Working Temperature: -20ºc/+50ºc Urea
Piusi Ocio Fuel Tank Level Gauge 110v
Inc. VAT: £545.09
Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased
Piusi Ocio Fuel Tank Level Gauge 230v
Inc. VAT: £425.09
Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased
Piusi Ocio Fuel Tank Level Gauge 230v
Inc. VAT: £508.27
Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased
Piusi Ocio Fuel Tank Level Gauge 230v - 4-20ma
Inc. VAT: £551.40
Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased
R13386
Inc. VAT: £51.41
Ocio Brass Weight - Fuel version For diesel, water, windscreen and oil if additional oil kit is purchased
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| BC8073 | BC8073 | 1 1/2" x 1/2" Black Iron Bush for Fuel Ocio Gauge For connecting the balance chamber fittings to a 1 ½” hole |
£2.48
Inc. VAT: £2.98 |
|
| BCS1056 | BCS1056 | 1" x 1/2" S/S Bush for AdBlue Ocio Gauge For connecting the balance chamber fitting to a 1" hole |
£3.77
Inc. VAT: £4.52 |
|
| BF2010 | BF2010 | 1" x 1/2" Brass Bush for Fuel Ocio Gauge For connecting the balance chamber fitting to a 1" hole |
£1.72
Inc. VAT: £2.06 |
|
| F00755G30 | F00755G30 | Ocio GSM Quad Band |
£1,102.32
Inc. VAT: £1,322.78 |
|
| F00755S00 | F00755S00 | Ocio Desk - 4 - Multi Tank |
£917.84
Inc. VAT: £1,101.41 |
|
| F00755S10 | F00755S10 | Ocio Desk - Single Tank |
£524.58
Inc. VAT: £629.50 |
|
| F00755S20 | F00755S20 | Ocio Desk - 8 - Multi Tank |
£1,212.85
Inc. VAT: £1,455.42 |
|
| F00755S30 | F00755S30 | Ocio Desk - 12 - Multi Tank |
£1,503.19
Inc. VAT: £1,803.83 |
|
| F12939000 | F12939000 | Ocio Oil Kit - For oil up to 2000cSt |
£39.33
Inc. VAT: £47.20 |
|
| F15610000 | F15610000 | Stainless Steel Nut For Stainless Steel Weight Must be purchased with the stainless steel weight in order to be fitted |
£41.72
Inc. VAT: £50.06 |
|
| F15611000 | F15611000 | Ocio Stainless Steel Weight - AdBlue version For AdBlue/Urea/DEF |
£42.60
Inc. VAT: £51.12 |
|
| F00755140 | Piusi Ocio AdBlue Tank Level Gauge 230v - AdBlue™ | Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Stainless Steel Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Working Temperature: -20ºc/+50ºc Urea |
£452.83
Inc. VAT: £543.40 |
|
| F0075501B | Piusi Ocio Fuel Tank Level Gauge 110v | Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased |
£454.24
Inc. VAT: £545.09 |
|
| F0075510D | Piusi Ocio Fuel Tank Level Gauge 230v | Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased |
£354.24
Inc. VAT: £425.09 |
|
| F0075510D | Piusi Ocio Fuel Tank Level Gauge 230v | Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased |
£423.56
Inc. VAT: £508.27 |
|
| F00755160 | Piusi Ocio Fuel Tank Level Gauge 230v - 4-20ma | Reading Type: 0-100%/mm/inches/litres/gal Tank Height (mm) - 600-4000 Capillary Length (m) - 10 Capillary Type - 6 x 4 Rilsan PA12 Brass Balance Chamber Weight Balance Chamber Fitting: 1/2" M BSP Max Working Temperature: -20ºc/+50ºc Diesel, water, windscreen and oil if additional oil kit is purchased |
£459.50
Inc. VAT: £551.40 |
|
| R13386 | R13386 | Ocio Brass Weight - Fuel version For diesel, water, windscreen and oil if additional oil kit is purchased |
£42.84
Inc. VAT: £51.41 |
