Piusi SB325_X Automatic AdBlue™ Magnetic Nozzle
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743

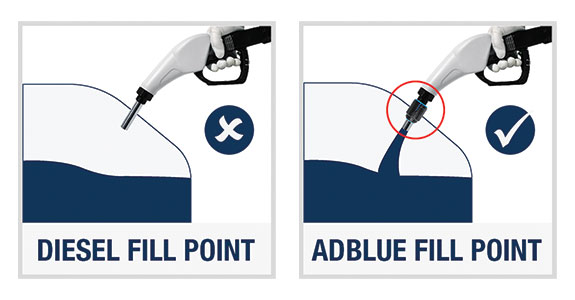

The Piusi SB325_X AdBlue™ Magnetic Nozzle is designed for use in conjunction with the ELAFIX 40 adaptor in order to prevent the costly miss-filling of AdBlue into the diesel tank. This magnetic spout nozzle will only allow fluid to pass once it has been magnetically opened by an AdBlue magnetic adaptor fitted within the vehicle filler neck. Therefore, by using this AdBlue nozzle you cannot physically dispense into the wrong tank, as the diesel fill point will not contain a magnet.
The miss-filling of AdBlue™ into the diesel tank is a common issue and will be costly for the vehicle owner to put right. AdBlue™ is not compatible with many materials and miss-filling can corrode the pipework and components of a fuel system – resulting in thousands of pounds of damage, as well as having to pay for the removal of AdBlue™ from the tank.
This AdBlue dispensing nozzle also benefits from a breakaway spout mechanism. This means that if the vehicle accidently drives away with the nozzle still positioned in the vehicle's fill point, the spout will detach from the nozzle. This means that damage will be limited to the spout only which can be replaced as a spare part, and the AdBlue pump system connected to the storage tank will not be pulled away.
Constructed of plastic but with a sturdy, stainless steel spout, this Piusi nozzle is a lightweight, cost effective alternative to the completely stainless steel automatic AdBlue™ nozzles on the market. Like these more expensive models, it still reliably shuts off dispensing when the AdBlue tank becomes full to prevent any overspill.
Please note: Only for use with AdBlue pumps - not suitable for gravity fed installations.
Features of the SB325_X AdBlue™ Dispensing Nozzle:
- Automatic AdBlue™ nozzle
- Magnetic spout for preventing miss-filling
- Breakaway spout mechanism
- Maximum flow rate: 45ltr Per Min
- Suitable for urea, water and chemicals
- Supplied with 3/4" plastic hose barb
- Fluid viscosity up to 6cSt
- Removable 3 position stay open latch
- Replacement spouts available (see accessories)
- Must be used with AdBlue magnetic adaptor
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Available Options
Elafix 40 AdBlue™ Magnetic Tank Adaptor
Inc. VAT: £47.68
19mm OD Compatible to ISO22241-3 Working Temp: -20°C to +85°C Weight: 65g For use with AdBlue magnetic nozzles
F18400000
Inc. VAT: £29.46
Nozzle Override Magnetic Adaptor Fits over a magnetic spout to allow it to dispense when not in contact with a vehicle tank magnetic adaptor e.g. when filling a smaller container or if you have some vehicles with a tank adaptor and some without.
F19174000
Inc. VAT: £132.14
Nozzle Magnetic Adaptor + Spout Kit combination of the magnetic miss-filling spout and the nozzle magnetic adaptor
Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout
Inc. VAT: £278.70
Max Flow Rate (lpm) - 45 Max Pressure (Bar) - 3.5 Spout OD (mm) - 19 Inlet - 3/4" Plastic Hose Barb Magnetic Miss-Filling Spout c/w Breakaway Mechanism AdBlue, Water and Chemicals
Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout & Nozzle Adaptor
Inc. VAT: £307.02
Max Flow Rate (lpm) - 45 Max Pressure (Bar) - 3.5 Spout OD (mm) - 19 Inlet - 3/4" Plastic Hose Barb Magnetic Miss-Filling Spout c/w Breakaway Mechanism Nozzle Magnetic Adaptor - For when filling without vehicle adaptor (e.g. need to dispense into a drum or container) AdBlue, Water and Chemicals
R19172000
Inc. VAT: £74.52
Magnetic Miss-Filling Spout Prevents the miss-filling of AdBlue into a diesel tank by only releasing fluid into a vehicle tank that has a magnetic adaptor
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| F15165000 | Elafix 40 AdBlue™ Magnetic Tank Adaptor | 19mm OD Compatible to ISO22241-3 Working Temp: -20°C to +85°C Weight: 65g For use with AdBlue magnetic nozzles |
£39.73
Inc. VAT: £47.68 |
|
| F18400000 | F18400000 | Nozzle Override Magnetic Adaptor Fits over a magnetic spout to allow it to dispense when not in contact with a vehicle tank magnetic adaptor e.g. when filling a smaller container or if you have some vehicles with a tank adaptor and some without. |
£24.55
Inc. VAT: £29.46 |
|
| F19174000 | F19174000 | Nozzle Magnetic Adaptor + Spout Kit combination of the magnetic miss-filling spout and the nozzle magnetic adaptor |
£110.12
Inc. VAT: £132.14 |
|
| F00618M40 | Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout | Max Flow Rate (lpm) - 45 Max Pressure (Bar) - 3.5 Spout OD (mm) - 19 Inlet - 3/4" Plastic Hose Barb Magnetic Miss-Filling Spout c/w Breakaway Mechanism AdBlue, Water and Chemicals |
£232.25
Inc. VAT: £278.70 |
|
| F00618M20 | Piusi SB325_X Automatic AdBlue Magnetic Nozzle c/w Breakaway Spout & Nozzle Adaptor | Max Flow Rate (lpm) - 45 Max Pressure (Bar) - 3.5 Spout OD (mm) - 19 Inlet - 3/4" Plastic Hose Barb Magnetic Miss-Filling Spout c/w Breakaway Mechanism Nozzle Magnetic Adaptor - For when filling without vehicle adaptor (e.g. need to dispense into a drum or container) AdBlue, Water and Chemicals |
£255.85
Inc. VAT: £307.02 |
|
| R19172000 | R19172000 | Magnetic Miss-Filling Spout Prevents the miss-filling of AdBlue into a diesel tank by only releasing fluid into a vehicle tank that has a magnetic adaptor |
£62.10
Inc. VAT: £74.52 |
