Piusi EX50 Fuel Transfer ATEX Pump
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743
From Piusi is the EX50 ATEX approved 230v or 12v fuel transfer pump, which has taken our product range into the market for flammable liquids. Designed for the mobile and static transfer of petrol, kerosene and diesel in a zone one environment, these ATEX pumps satisfy the European directives for explosion proof equipment. This petrol transfer pump has a sturdy, cast iron body, and thanks to its quality manufacturing has a long life span. Incorporated in the 230 and 12 volt fuel transfer pump body is an integrated bypass valve.
These ATEX pumps are available in mains or low voltage, and are also available as part of a drum kit that comes with drum connector and nozzle holster. This Italian made 230v and 12v fuel transfer pump has an anti-noise filter which makes the pump application more convenient with a low level of noise.
Designed for fuel dispensing and transfer, not fuel recirculation systems.
Please note: Power cables & connectors are dependant upon the individual site risk assessment for the connection method between the ATEX Piusi fuel pump and power source.
Features of the EX50 ATEX Fuel Transfer Pump:
- Explosion proof kerosene, diesel and petrol transfer pump
- Suitable for AVGAS, AVJET A1, Aspen 2, Aspen 4 & petrol with 15% ethanol blend
- Integrated bypass valve
- Maximum flow rate: 50ltr Per Min
- Duty cycle: 30 min on/ 60 min off
- Anti-noise filter
- Cast iron construction
- ATEX pump certified for Zone 1
- Viton seals
- Available in 12v and 230v
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Available Options
Drum Connector c/w Filter & Valve
Inc. VAT: £58.43
2" M BSP drum connection 1" F BSP outlet Integrated filter Integrated valve Diesel, kerosene, oil, gasoline
F17996000
Inc. VAT: £21.06
ATEX Flexible Cable Gland
F18156000
Inc. VAT: £27.88
ATEX Coduit Cable Gland
Piusi EX50 ATEX Pump 12v
Inc. VAT: £485.52
Max flow (lpm) – 50 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1” F BSP Flanged Petrol, kerosene and diesel
Piusi EX50 ATEX Pump 12v - 25lpm
Inc. VAT: £465.12
Max flow (lpm) – 25 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 3/4” F BSP Flanged Petrol, kerosene and diesel

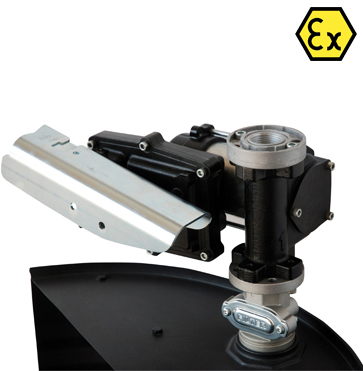

Piusi EX50 ATEX Pump 12v c/w Drum Connector and Nozzle Switch
Inc. VAT: £472.80
Max flow (lpm) – 50 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1" F BSP 2” drum connector Nozzle switch Petrol, kerosene and diesel
Piusi EX50 ATEX Pump 230v
Inc. VAT: £486.43
Max flow (lpm) – 50 230v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1” F BSP Flanged Petrol, kerosene and diesel
Piusi EX50 ATEX Pump 230v c/w Drum Connector andNozzle Switch
Inc. VAT: £518.16
Max flow (lpm) – 50 230v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1" F BSP 2” drum connector Nozzle switch Petrol, kerosene and diesel
Piusi Metal Telescopic Downtube (1100mm)
Inc. VAT: £39.89
1" BSP Drum Connection Max length - 1100mm Suitable for petrol, kerosene and diesel transfer pumps
Piusi Metal Telescopic Downtube (1800mm) c/w 2" Drum Connector and Valve
Inc. VAT: £138.36
Max length - 1800mm 2" Drum connector and valve Suitable for petrol, kerosene and diesel transfer pumps
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| F17163000 | Drum Connector c/w Filter & Valve | 2" M BSP drum connection 1" F BSP outlet Integrated filter Integrated valve Diesel, kerosene, oil, gasoline |
£48.69
Inc. VAT: £58.43 |
|
| F17996000 | F17996000 | ATEX Flexible Cable Gland |
£17.55
Inc. VAT: £21.06 |
|
| F18156000 | F18156000 | ATEX Coduit Cable Gland |
£23.23
Inc. VAT: £27.88 |
|
| F00371000 | Piusi EX50 ATEX Pump 12v | Max flow (lpm) – 50 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1” F BSP Flanged Petrol, kerosene and diesel |
£404.60
Inc. VAT: £485.52 |
|
| F0037103A | Piusi EX50 ATEX Pump 12v - 25lpm | Max flow (lpm) – 25 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 3/4” F BSP Flanged Petrol, kerosene and diesel |
£387.60
Inc. VAT: £465.12 |
|
| F00372020 | Piusi EX50 ATEX Pump 12v c/w Drum Connector and Nozzle Switch | Max flow (lpm) – 50 12v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1" F BSP 2” drum connector Nozzle switch Petrol, kerosene and diesel |
£394.00
Inc. VAT: £472.80 |
|
| F00373000 | Piusi EX50 ATEX Pump 230v | Max flow (lpm) – 50 230v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1” F BSP Flanged Petrol, kerosene and diesel |
£405.36
Inc. VAT: £486.43 |
|
| F00374020 | Piusi EX50 ATEX Pump 230v c/w Drum Connector andNozzle Switch | Max flow (lpm) – 50 230v Duty Cycle (min) – 30 on/60 off 2700rpm Inlet – 1" F BSP 2” drum connector Nozzle switch Petrol, kerosene and diesel |
£431.80
Inc. VAT: £518.16 |
|
| F008934020 | Piusi Metal Telescopic Downtube (1100mm) | 1" BSP Drum Connection Max length - 1100mm Suitable for petrol, kerosene and diesel transfer pumps |
£33.24
Inc. VAT: £39.89 |
|
| F008934010 | Piusi Metal Telescopic Downtube (1800mm) c/w 2" Drum Connector and Valve | Max length - 1800mm 2" Drum connector and valve Suitable for petrol, kerosene and diesel transfer pumps |
£115.30
Inc. VAT: £138.36 |
