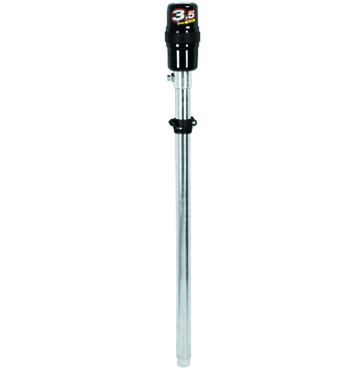

Piusi 3:1 Air Operated Oil Pump
Need assistance?
We are happy to answer any questions you may have.
Contact usOr call us on 01342 713743
New from Piusi is the “Pro + Silent” air operated oil pump range; part of their growing offering to the oil and lubrication market. The design of these air oil pumps has been specially considered to ensure high performance and durability in garage and workshop environments. These 3:1 air powered oil transfer pumps are designed for pumping medium viscosity oils over short to medium distances. They are available in stub and long length versions for mounting to a wall or drum respectively, and a range of optional accessories are available to go alongside the Piusi pump range (see accessories table).
For a more indepth guide to the design benefits that make the Piusi air operated pump range superior to alternatives, read here.
Please refer to our viscosity chart to check whether this oil dispensing pump is suitable for use with your oil.
Features of the Piusi 3:1 Air Operated Oil Transfer Pump:
- 3:1 ratio air operated oil transfer pumps
- Low operating noise of 77dB
- Pneumatic exchanger & three-stage air discharge system
- Enhanced efficiency & reduced air consumption
- Polyurethane internal seals
- Flow rate: 21.5ltrs per min
- Supplied with 2” BSP bung adaptor
- Available in stub (175mm) & long length (940mm)
Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
Available Options
½” Piusi Oil Delivery Hose 2m
Inc. VAT: £43.32
Hose Length – 2m Inlet – ½” M BSP Outlet – ½” F BSP Max Pressure (bar) – 150 For Oil
½” Piusi Oil Delivery Hose 5m
Inc. VAT: £89.57
Hose Length – 5m Inlet – ½” M BSP Outlet – ½” F BSP Max Pressure (bar) – 150 For Oil
Drum Trolley 180-200kg
Inc. VAT: £430.18
Wheels – 4 For Drum Size – 180-200kg For Any Fluid
Drum Trolley 30-60kg
Inc. VAT: £214.18
Wheels – 4 For Drum Size – 30-60kg For Any Fluid
F19964000
Inc. VAT: £20.65
Wall Bracket
F19972000
Inc. VAT: £177.26
Kit Suction Pipe
F19975000
Inc. VAT: £33.22
Suction Pipe 385mm
F19976000
Inc. VAT: £34.37
Suction Pipe 555mm
F19977000
Inc. VAT: £35.71
Suction Pipe 765mm
F19978000
Inc. VAT: £36.53
Suction Pipe 955mm
F19979000
Inc. VAT: £74.32
Drip Tray
Piusi 3:1 Air Oil Pump 175mm (Stub)
Inc. VAT: £341.50
Max Flow (lpm) – 21.5 Ratio – 3.5:1 Suction Pipe – 175mm Air Pressure (bar) – 3-8 Air Consumption (lpm) – 200-250 Air Inlet – ¼” F Outlet – ½” M BSP
Piusi 3:1 Air Oil Pump 940mm (Long)
Inc. VAT: £387.95
Max Flow (lpm) – 21.5 Ratio – 3.5:1 Suction Pipe – 940mm Air Pressure (bar) – 3-8 Air Consumption (lpm) – 200-250 Air Inlet – ¼” F Outlet – ½” M BSP
| Code | Name | Description | Price | Buy |
|---|---|---|---|---|
| F19973000 | ½” Piusi Oil Delivery Hose 2m | Hose Length – 2m Inlet – ½” M BSP Outlet – ½” F BSP Max Pressure (bar) – 150 For Oil |
£36.10
Inc. VAT: £43.32 |
|
| F19974000 | ½” Piusi Oil Delivery Hose 5m | Hose Length – 5m Inlet – ½” M BSP Outlet – ½” F BSP Max Pressure (bar) – 150 For Oil |
£74.64
Inc. VAT: £89.57 |
|
| F19966000 | Drum Trolley 180-200kg | Wheels – 4 For Drum Size – 180-200kg For Any Fluid |
£358.48
Inc. VAT: £430.18 |
|
| F19965000 | Drum Trolley 30-60kg | Wheels – 4 For Drum Size – 30-60kg For Any Fluid |
£178.48
Inc. VAT: £214.18 |
|
| F19964000 | F19964000 | Wall Bracket |
£17.21
Inc. VAT: £20.65 |
|
| F19972000 | F19972000 | Kit Suction Pipe |
£147.72
Inc. VAT: £177.26 |
|
| F19975000 | F19975000 | Suction Pipe 385mm |
£27.68
Inc. VAT: £33.22 |
|
| F19976000 | F19976000 | Suction Pipe 555mm |
£28.64
Inc. VAT: £34.37 |
|
| F19977000 | F19977000 | Suction Pipe 765mm |
£29.76
Inc. VAT: £35.71 |
|
| F19978000 | F19978000 | Suction Pipe 955mm |
£30.44
Inc. VAT: £36.53 |
|
| F19979000 | F19979000 | Drip Tray |
£61.93
Inc. VAT: £74.32 |
|
| F0021400A | Piusi 3:1 Air Oil Pump 175mm (Stub) | Max Flow (lpm) – 21.5 Ratio – 3.5:1 Suction Pipe – 175mm Air Pressure (bar) – 3-8 Air Consumption (lpm) – 200-250 Air Inlet – ¼” F Outlet – ½” M BSP |
£284.58
Inc. VAT: £341.50 |
|
| F0021402A | Piusi 3:1 Air Oil Pump 940mm (Long) | Max Flow (lpm) – 21.5 Ratio – 3.5:1 Suction Pipe – 940mm Air Pressure (bar) – 3-8 Air Consumption (lpm) – 200-250 Air Inlet – ¼” F Outlet – ½” M BSP |
£323.29
Inc. VAT: £387.95 |
