Piusi BP3000 24v & 12v Diesel Transfer Pump

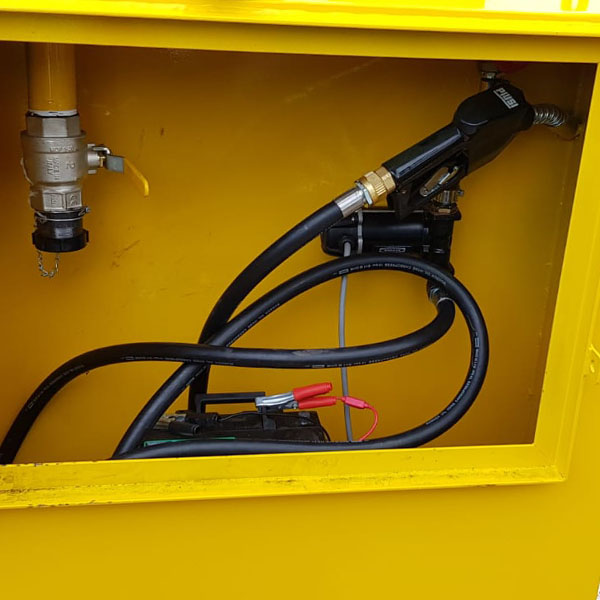

The Bypass 3000 DC portable diesel transfer pump is required when only 12v or 24v power supply is available. This Piusi fuel pump is able to be mounted in various positions and has a range of optional accessories allowing a number of connection configurations (see accessories table). Due to the compact size and flexibility of these 12 volt fuel transfer pumps, they can be used for a number of applications including being installed onboard earth moving machinery and in bowsers or portable tanks for mobile refuelling in the agricultural, construction and off-road markets.

This Italian made 24v and 12v diesel transfer pump offers high performance and has been built to meet stringent OEM quality requirements such as being able to handle excessive vibrations common on off-road machinery.

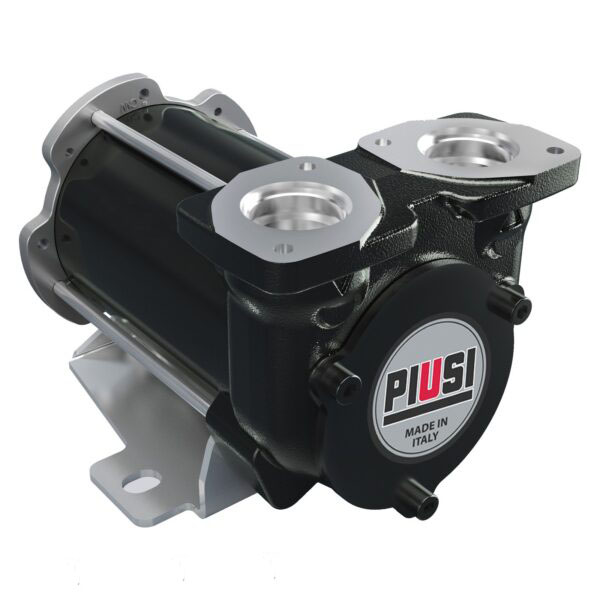

Thanks to its strong DC brush motor, the BP 3000 24v and 12v diesel transfer pumps have pump flow capabilities of up to 50ltr per min, whilst still tolerating any back pressure that may occur. This battery powered diesel dispensing pump is available with vertical push fits ports or horizontal push fit or threaded ports. The horizontal BP3000 has the same flow direction as the traditional Piusi Bypass 2000 refuelling pump, which when looking at the pump head is right to left, whereas the vertical is left to right.

Features of the Bypass 3000 Portable Diesel Fuel Transfer Pump:

• Battery powered fuel transfer pump
• Self-priming
• Sintered steel rotor & acetal resin vanes
• Cast iron pump body with anti-corrosion paint
• Incorporated bypass valve & NBR lip seal
• Flow rate: 50ltr Per Min
• Direct current brush motor with permanent magnet stator
• 30min duty cycle
• Thermal motor overload protection

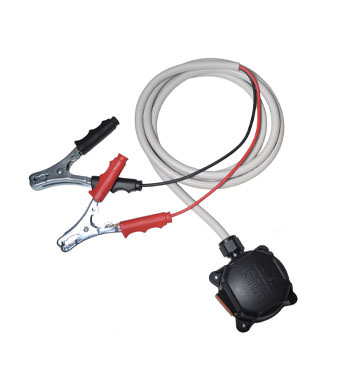

• Terminal cap and clips available (see accessories table)
• Protection grade: IP55
• Available in 12v/24v

Read why you should accept nothing less than the market leading, Italian manufacturer of fluid handling equipment.
